| Lugar de origen: | SHENZHEN CHINA |
|---|---|
| Nombre de la marca: | VEGASHINE / OEM |
| Número de modelo: | VGS-BF1404003HDS-J6412 |
| Cantidad de orden mínima: | 1 unidad |
| Detalles de empaquetado: | Caja de cartón |
| Tiempo de entrega: | 3 a 10 días del trabajo |
| Condiciones de pago: | T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 1000 unidades por mes |
| UPC: | Celeron J6412 de cuatro núcleos | RAM: | 2 ranuras SO-DIMM DDR4 de 260 pines |
|---|---|---|---|
| Mostrar: | HDMI + DP | Ethernet: | 4*INTEL i225/i226 LAN |
| COM: | 1 * puertos serie RJ45 | USB: | 1×USB3.0, 3×USB2.0 |
| Tamaño: | 178 × 126 × 55 milímetros | Fuerza: | El valor de las emisiones de CO2 será el siguiente: |
Intel ® J6412 cpu 4*2.5G LAN Firewall computer pFsense soft router fanless mini industry pc
Key Features
Aluminium alloy chassis
Celeron J6412 quad-core quad-thread, main frequency: 2.00GHz
2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB
1×SATA interface, 1×M.2_2280 interface
1×MINI PCI-E interface
1×RJ45 COM port
1×DP+HD interface
1×SIM card slot
DC 12V-4A, 5.5×2.5mm barrel jack

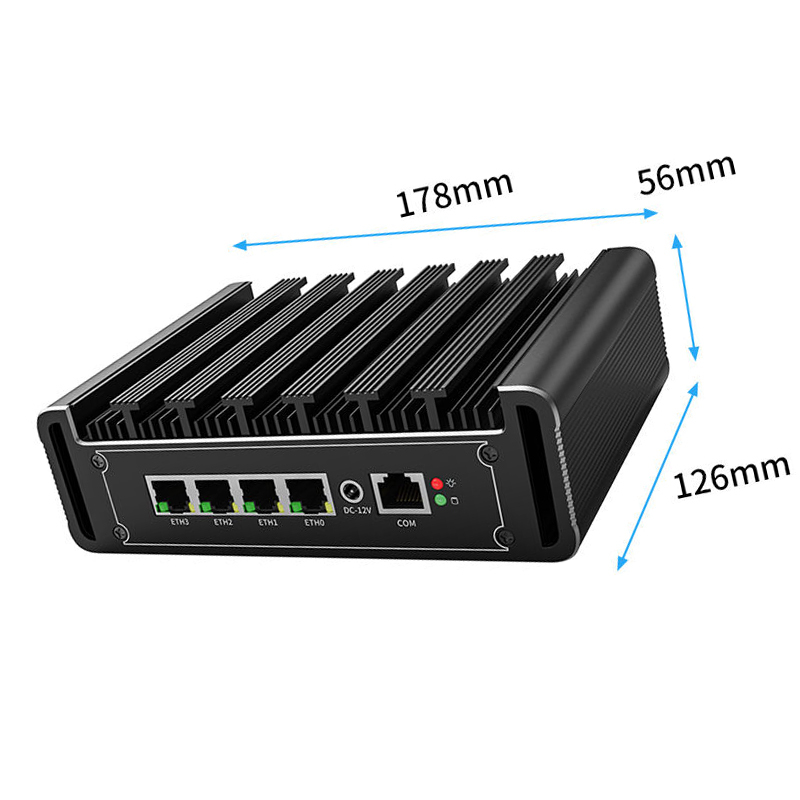

Dimension: 178 × 126 × 55 mm
Specifications
|
Model No. |
VGS-BF1404003HDS-J6412 |
|---|---|
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| CPU | Celeron J6412 quad-core quad-thread, main frequency: 2.00GHz |
| Memory | 2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB |
| Storage | 1×SATA interface, 1×M.2_2280 interface |
| Expansion Bus | 1×MINI PCI-E interface |
| Network | Onboard INTEL 2.5G NIC chip |

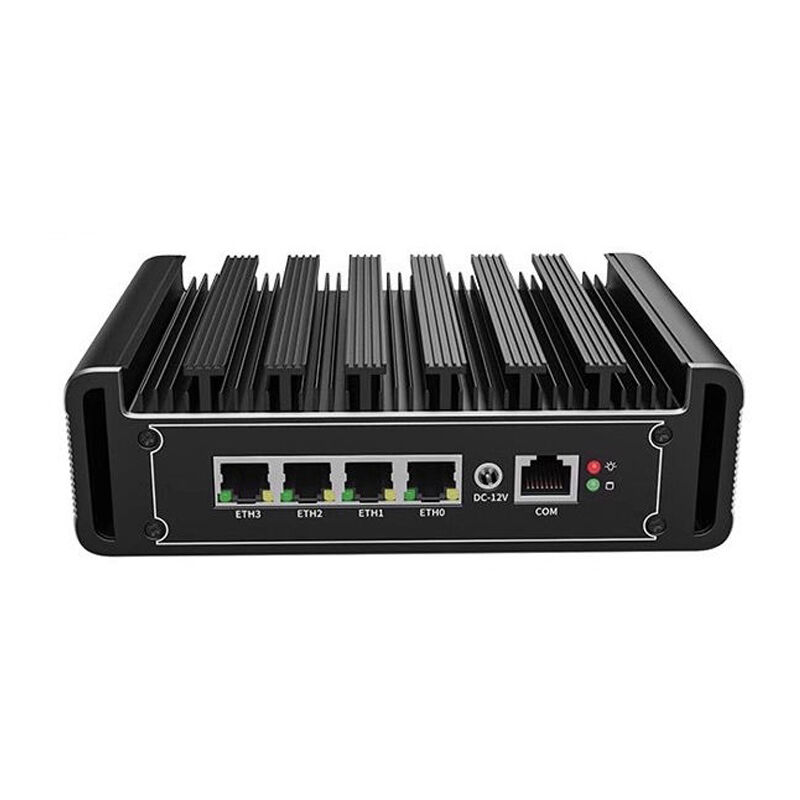

| Front Panel I/O |
4×2.5G Ethernet ports, 1×RJ45 COM port, 1×DC power interface, 1×LED indicator |

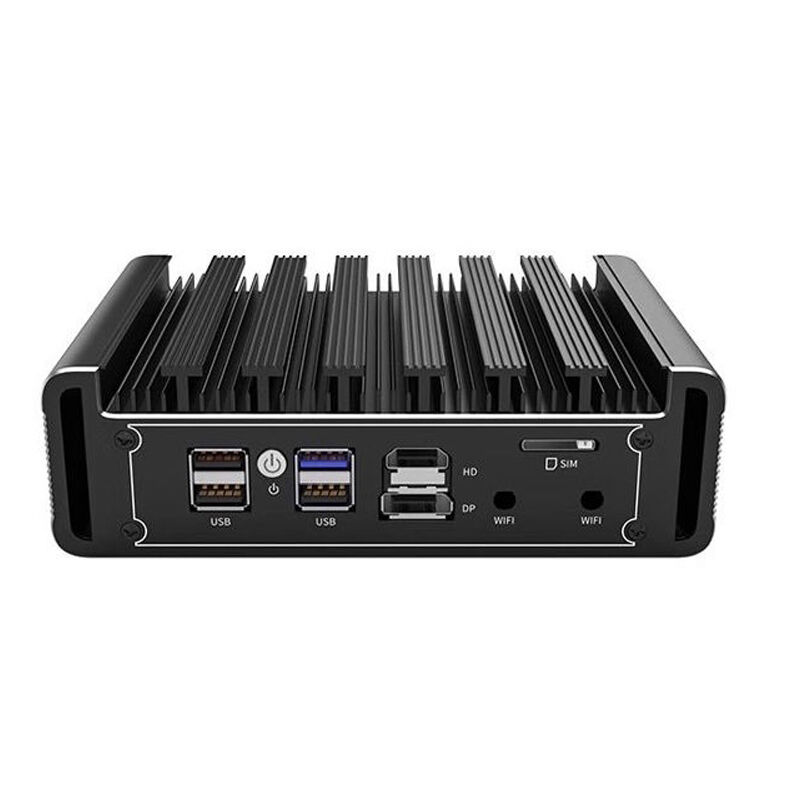

| J6412 Rear Panel I/O |
1×DP+HD interface, 1×USB3.0, 3×USB2.0 1×switch button, 1×SIM card slot |
| Onboard I/O | 1×SATA power interface, 1×CPU fan power socket, 1×7pin SATA |
| Power Supply | DC_IN 12V |
| Dimensions | 178 × 126 × 55 mm |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
