| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | VEGASHINE / OEM |
| Número de modelo: | VGS-F10406003J-6-I5 |
| Cantidad de orden mínima: | 1 unidad |
| Detalles de empaquetado: | Caja de cartón |
| Tiempo de entrega: | 3 a 10 días del trabajo |
| Condiciones de pago: | T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 1000 unidades por mes |
| Chasis: | Chasis de aluminio | Dimensión: | 195mm*143mm*62mm |
|---|---|---|---|
| Color del chasis: | Negro | UPC: | Intel® Core™ i5-6200U |
| RAM: | 1 *DDR4 | LAN Gigabit: | 6*Intel I211AT |
| Puerto COM: | 1 * serie estándar RS232 de CISCO |

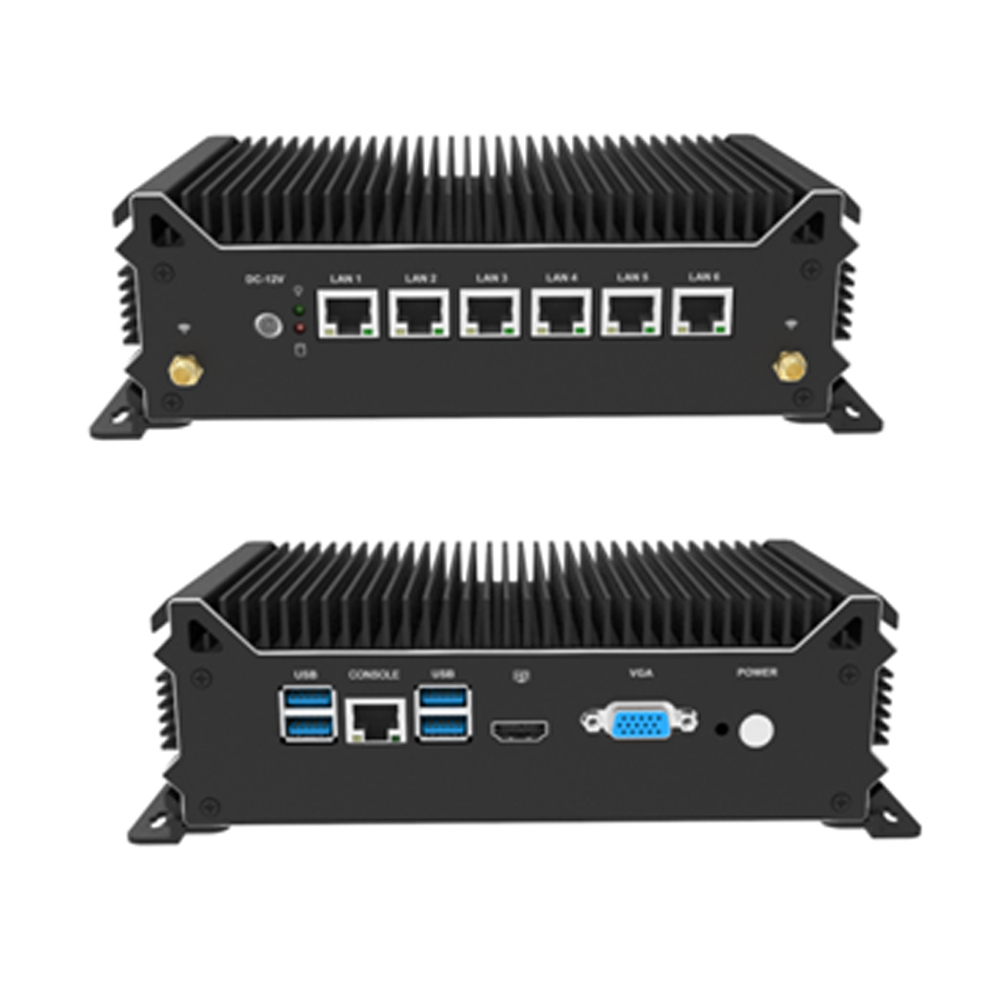

Intel® Core™ I5-6200U 6* Gigabit LAN Mini Firewall PC support pFsense
Key Features
Specifications
|
Hardware
|
CPU | Compatible with Intel® Core™ 6th/7th generation I3/I5/I7 -U series processors. |
| Chipset | SOC | |
| Memory | 1*SO-DIMM memory slot, supporting single-channel 2133MHz DDR4 memory, with a maximum capacity of 32GB. | |
| Storage |
1* M-SATA 1* 7-pin SATA3.0 hard drive interface,transfer rate up to 6Gbps |
|
| I/O | Network | 6*Intel I211AT1GbE |
| Serial port | 1*RJ45 COM port | |
| LED indicator | Power LED + HDD LED | |
| Extension interface |
1* M-PCIE , supportWiFi/Bluetooth/4G module 1*SIM card slot |
|
| USB | 4*USB 3.0(5Gbps) | |
| Display |
1*HDMI 1*VGA supporting synchronous and asynchronous dual display |
|
| Power Supply | 1*DC 12V 5.5*2.5mm | |
| Environment | Function | Power on, Wake-up, PXE boot, Watchdog. |
| Dimension | 195*143*62 mm | |
| Color | Noble Black | |
| Power supply | External adapter | |
| Temperature |
Operating temperature: -20℃~60℃ Storage temperature: -20℃~70℃ |
|
| Working humidity | 5%~95%Relative humidity without condensation | |
| Operate System | Support Win 10/11, Linux, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos, Pfsense, iKuai, WayOS etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
About shipping
1.Leading Time:1 ~ 3 Days for one sample, 4~6 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
