| Lugar de origen: | PORCELANA |
|---|---|
| Nombre de la marca: | VEGASHINE / OEM |
| Número de modelo: | VGS-BF13104003-J6412 |
| Cantidad de orden mínima: | 1 unidad |
| Detalles de empaquetado: | Caja de cartón |
| Tiempo de entrega: | 3 a 10 días del trabajo |
| Condiciones de pago: | T/T, Western Union, Moneygram |
| Capacidad de la fuente: | 1000 unidades por mes |
| Chasis: | Chasis de aluminio | Dimensión: | Las medidas siguientes se aplicarán: |
|---|---|---|---|
| Color del chasis: | negro | UPC: | Celeron J6412 procesador de cuatro hilos de cuatro núcleos de 2.0GHz |
| RAM: | 2 *DDR4 | LAN Gigabit: | 4* Intel i226 2.5GLAN y también |
| Puerto COM: | 1 * serie estándar RS232 de CISCO |
Quad cores J6412 4* 2.5GLAN firewall PC appliance soft router support pFsense
Key Features
Integrated Intel® Celeron J6412 quad core 4 threads 2.0G hz processor
Burst Frequency 2.6 GHz
Intel® UHD Graphics for 10th Gen Intel® Processors
support 1*H-D-M-I +1*DP
Support 2*DDR4 3200Mhz up to 32GB
1*SATA3.0
1*M.2 (2280) NVMe
Onboard 4* Intel i226 2.5GLAN
5*USB2.0 , 1*USB3.0
1*DP
1* H-D-M-I display output
4* RJ45 Intel i226 2.5GLAN
1* RJ45 Csico standard COM
DC 12V 4A power supply
Dimension: 136mm*126mm*40mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | VGS-BF13104003-J6412 | |
| Chassis | Color | Black |
| Dimension | 136mm*126mm*40mm | |
| Material | aluminium alloy chassis | |
| Motherboard | Processor |
Integrated Intel® Celeron J6412 quad core 4 threads 2.0G hz processor Burst Frequency 2.6 GHz TDP 10W |
| Chipset | Intel® Elkhart Lake J6412 | |
| Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors support 1*H-D-M-I +1*DP |
|
| Memory | Support 2*DDR4 3200Mhz up to 32GB | |
| BIOS | AMI BFI | |
| Storage | SATA | 1*SATA3.0 |
| M.2 | 1*M.2 (2280) NVMe | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 4* Intel i226 2.5GLAN |
| WiFi | N/A | |

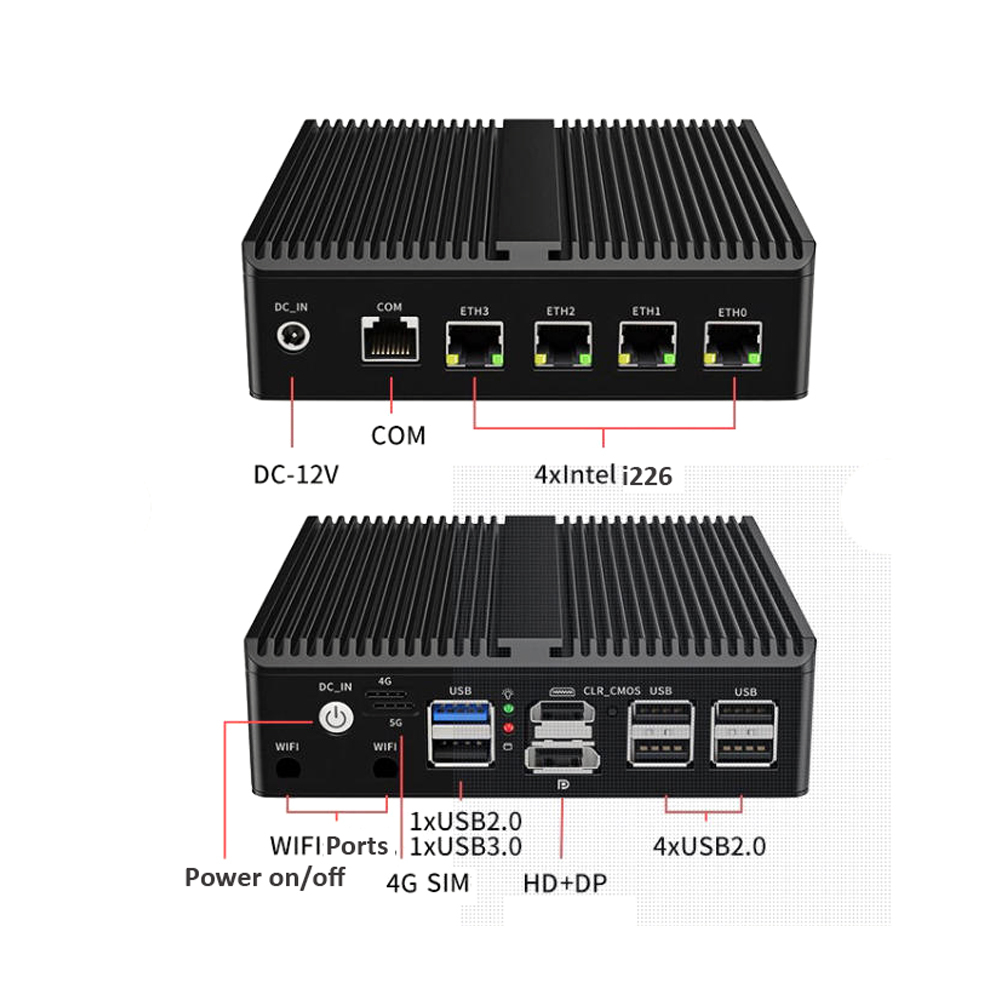

| Interface | Front I / O | 1*Power button |
| 1*SIM slot | ||
| 5*USB2.0 , 1*USB3.0 | ||
| 1*DP | ||
| 1* H-D-M-I display output | ||
| Back I / O | 4* RJ45 Intel i226 2.5GLAN | |
| 1* RJ45 Csico standard COM | ||
| 1*DC-IN power supply interface | ||
| Expansion | Mini PCIe |
1 *mini PCIE channel support USB signal 3G/4G module, 1*M.2 2242 support 5G |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~50℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-90%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
About shipping
1.Leading Time:1 ~ 3 Days for one sample, 4~6 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
